The Arrow Four Lumen Central Venous Catheter (CVC) 8.5Fr × 16cm, Ref. CV-12854 is a multi-lumen vascular access device designed to provide central venous access for short-term clinical management. Manufactured by Arrow, a vascular access product brand of Teleflex, this catheter set is intended for use by trained healthcare professionals in appropriate clinical settings.
Featuring four separate lumens, the catheter allows clinicians to establish multiple independent access pathways through a single catheter placement. Depending on the patient's treatment plan and clinical requirements, these pathways can support the administration of compatible intravenous fluids and medications, as well as other clinically indicated central venous access functions.

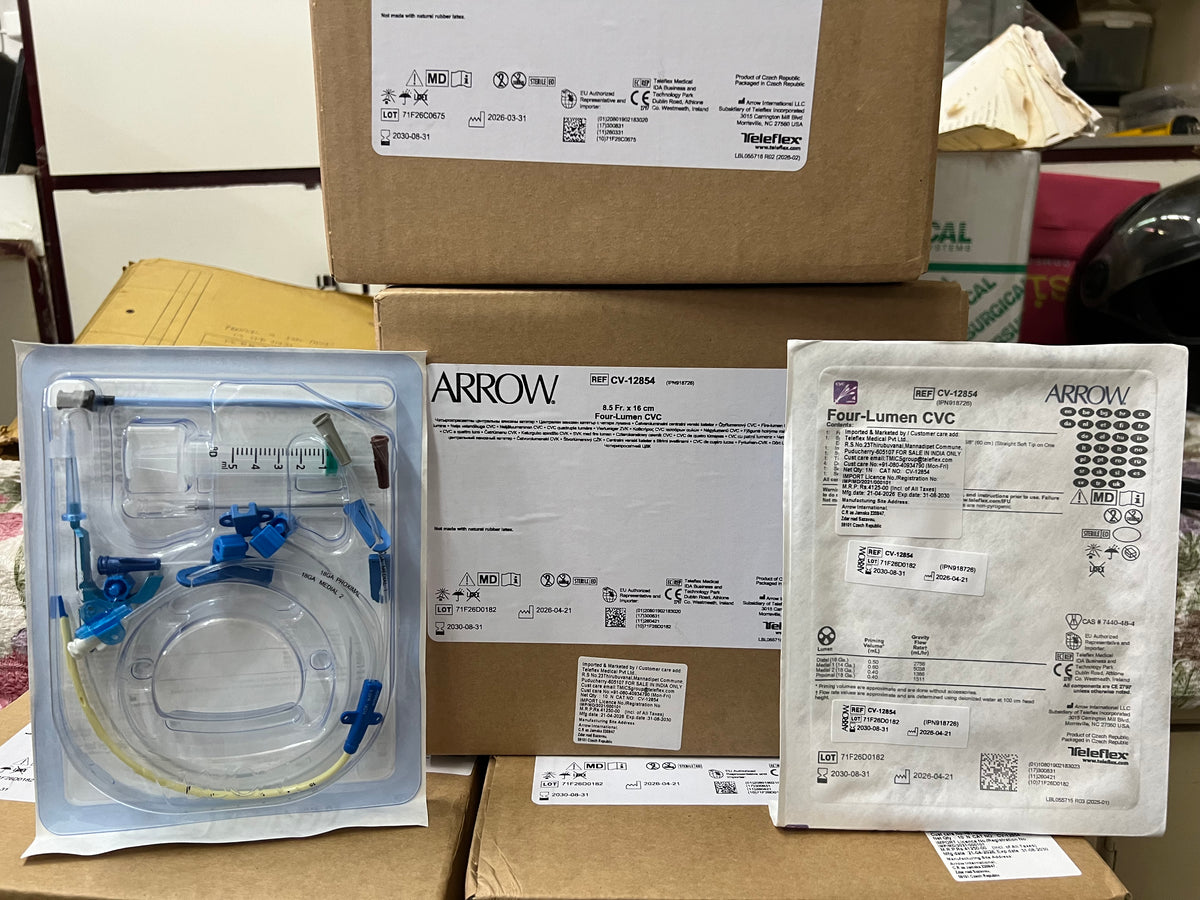

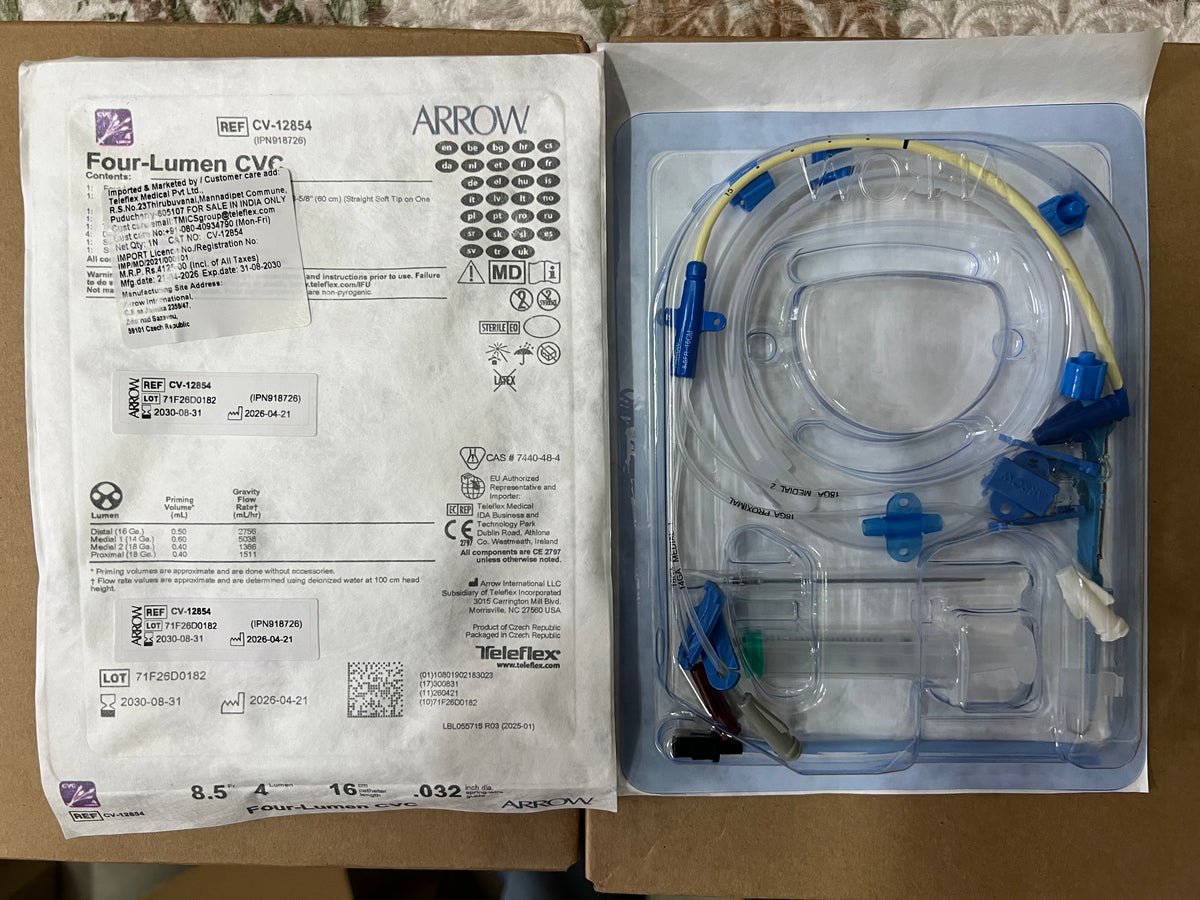

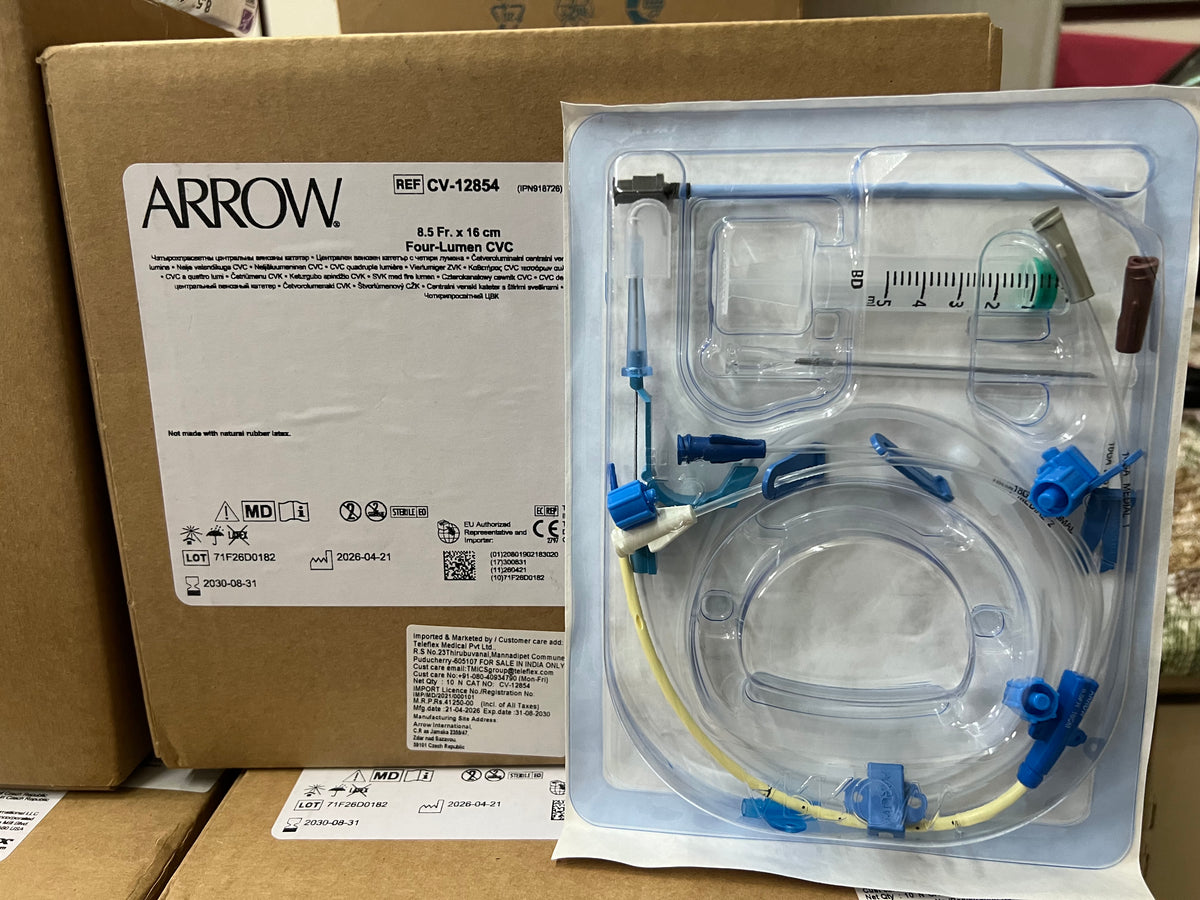

The 8.5 French catheter has an outer diameter of approximately 3.0 mm and a length of 16 cm. The CV-12854 set includes supporting insertion components, including a spring-wire guide, introducer needle, tissue dilator, syringe, catheter clamp, adjustable fixation hub and protective dust caps.
At Shah Trading Corporation, Mumbai, we supply Arrow vascular access products to healthcare institutions and medical procurement teams across India.
Key features
* Four-lumen configuration: Provides four separate internal fluid pathways through a single catheter.
* 8.5 Fr catheter size: Approximately 3.0 mm outer diameter, as specified in the manufacturer's catalogue.
* 16 cm catheter length: A defined catheter length for clinicians to assess against the patient's anatomy and intended access site.
* Guidewire-assisted insertion components: Supplied with a spring-wire guide featuring a straight soft tip at one end and a J-tip at the other, together with an Arrow Advancer.
*Dedicated insertion accessories: Includes an introducer needle, tissue dilator and 5 mL Luer-slip syringe.
* Catheter fixation support: Includes a SecondSite adjustable hub fastener and catheter clamp.
* Four protective dust caps: Supplied for the catheter's extension-line connections.
* Latex information: The product is not made with natural rubber latex.
Product specifications
|
Specification
|
Details
|
|
Product name
|
Arrow Four Lumen CVC
|
|
Product category
|
Central Venous Catheter / Central Venous Access
|
|
Brand
|
Arrow
|
|
Manufacturer brand owner
|
Teleflex
|
|
Reference number
|
CV-12854
|
|
Number of lumens
|
4
|
|
Catheter size
|
8.5 Fr
|
|
Approximate outer diameter
|
3.0 mm
|
|
Catheter length
|
16 cm
|
|
Guidewire
|
Spring-wire guide, 0.032 in (0.81 mm) diameter × 60 cm
|
|
Guidewire tip configuration
|
Straight soft tip and J-tip
|
|
Introducer needle
|
18 G × 2½ in (6.35 cm), XTW
|
|
Syringe
|
5 mL, Luer-slip
|
|
Tissue dilator
|
9 Fr × 10.2 cm
|
|
Protective caps
|
4 non-vented dust caps
|
|
Fixation components
|
SecondSite adjustable hub fastener and catheter clamp
|
|
Natural rubber latex
|
Not made with natural rubber latex
|
|
Case quantity
|

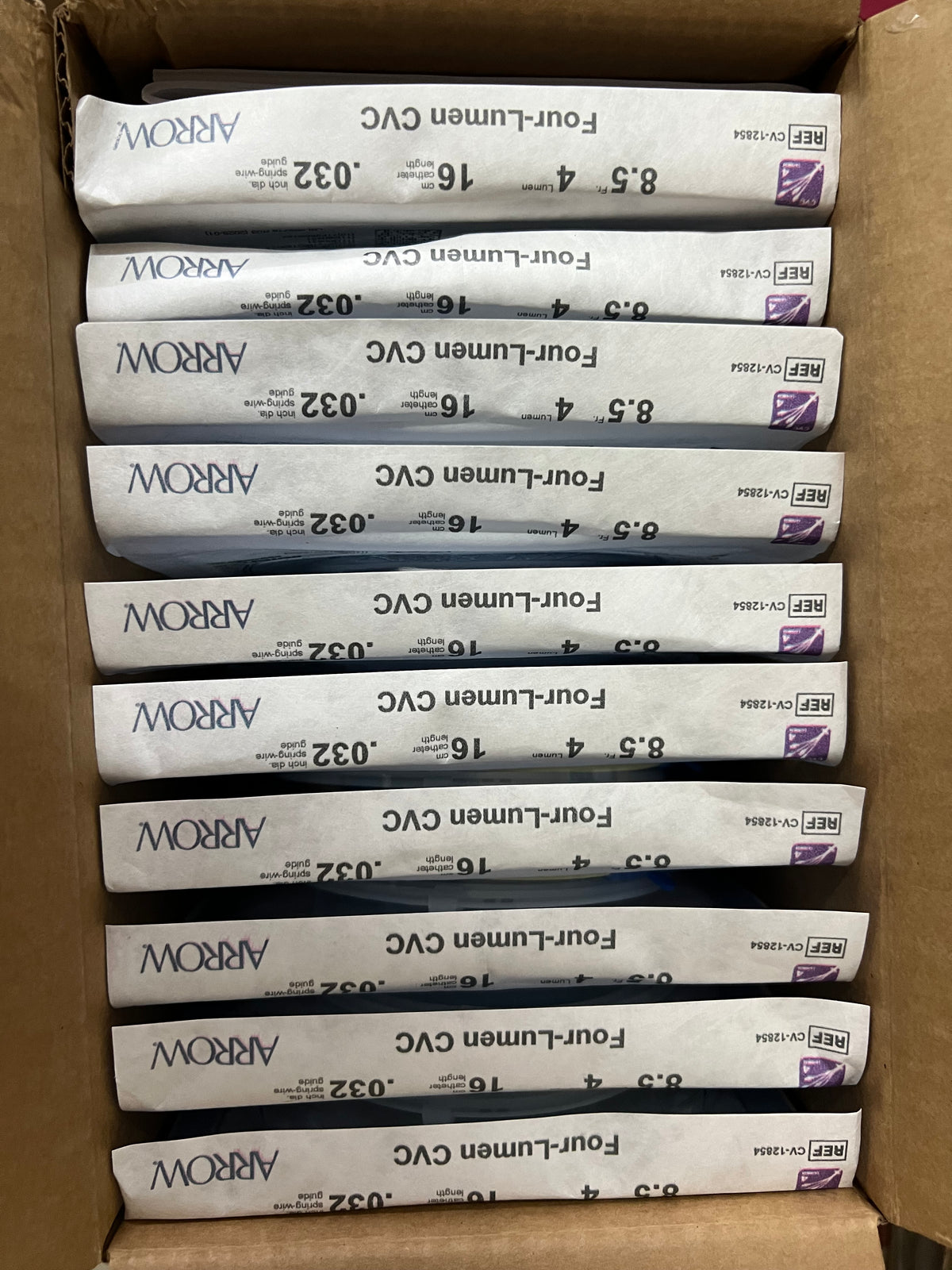

10 sets per case
|
|
Manufacturer
|
Arrow International, Czech Republic
|
|
Distributor in India
|
Shah Trading Corporation, Mumbai
|
Actual use of the product:
The Arrow Four Lumen CVC is used by trained clinicians to establish central venous access when the patient's clinical condition and treatment plan require it. The four lumens provide separate internal pathways, but they do not automatically make every medication or infusion compatible with every other infusion. Clinicians must assess compatibility, prescribed flow requirements, catheter-tip position and the patient's condition.
