A Resuscitator is an emergency medical device that is used to assist or restore the respiration of a person who is not breathing normally.

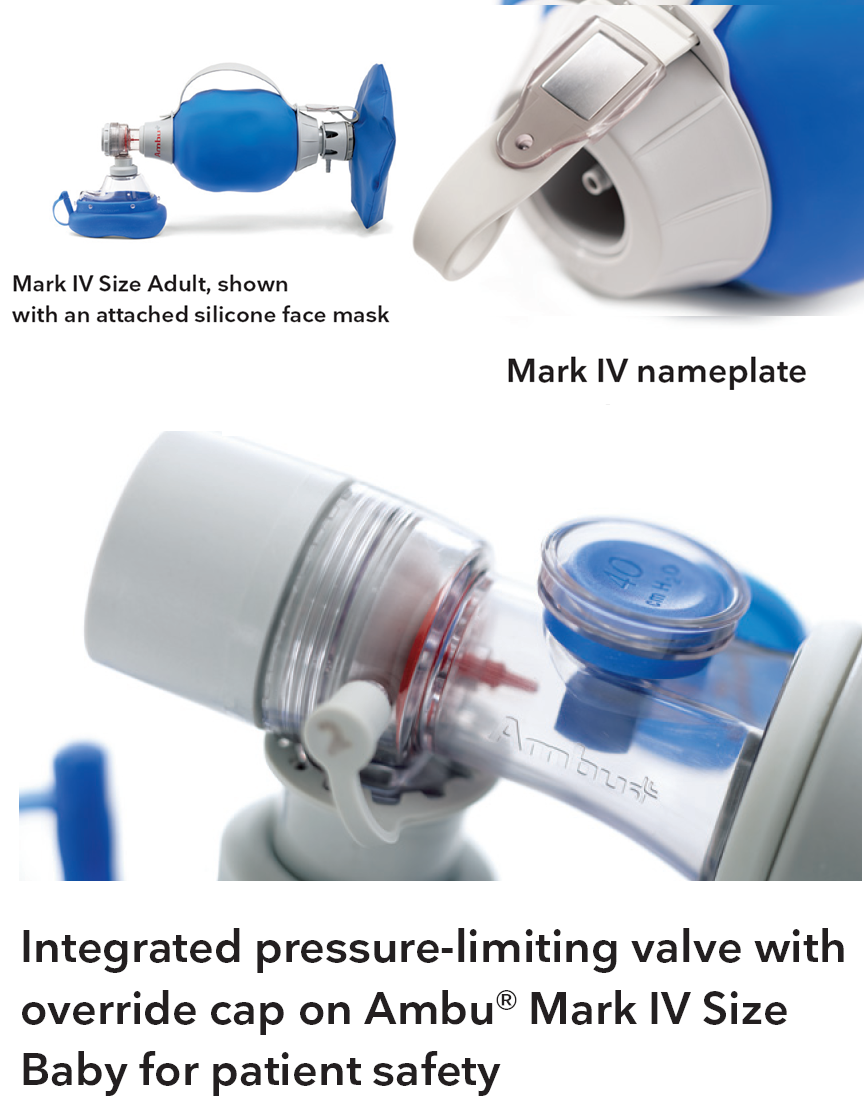

The Ambu Mark IV Reusable Resuscitator is a professional-grade emergency ventilation device designed for reliable respiratory support. Its transparent patient valve housing allows healthcare providers to visually confirm valve function during resuscitation.
A unique swivel connector between the valve and face mask enables full 360° rotation, giving operators flexibility to adjust positions without interrupting ventilation.
The pediatric/baby size version features a built-in pressure limiting system that reduces the risk of barotrauma, with an override cap option when higher pressures are required.
Durable, autoclavable, and easy to maintain, the Ambu Mark IV is trusted worldwide for hospitals, ICUs, and emergency services.
Key Features
- Transparent valve housing for monitoring functionality. - Swivel connector enables 360° rotation without disrupting ventilation. - Built-in pressure limiting system (in baby size) reduces barotrauma risk. - Override cap allows higher pressures when clinically necessary. - Ergonomic design for secure grip and operator control. - Reusable, fully autoclavable, and easy to disassemble. - Available in adult, child, and baby sizes. - Distributor in India - Shah Trading Corporation, Mumbai

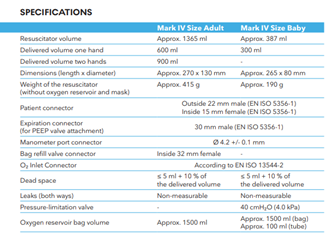

Product Specification:
Parameter
Specification
Product Type
Reusable Manual Resuscitator (Self-Inflating Bag)

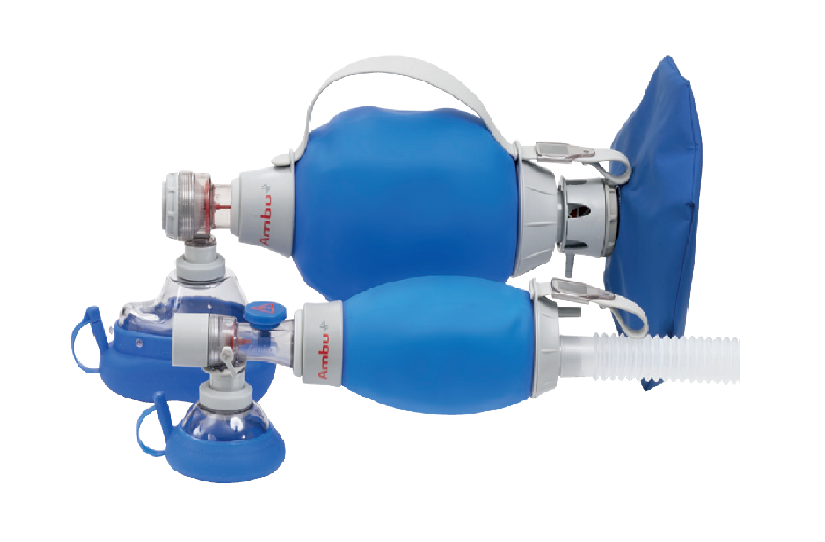

Available Sizes
Adult Version and Baby/Pediatric Version
Construction Material
Medical-grade silicone for inner and outer bag; polysulfone and polycarbonate for valve assembly
Reservoir Volume (Adult)
Approx. 1500 mL
Maximum Deliverable Volume (Adult)
Up to 1300 mL
Pressure Limiting System
Built-in pressure relief mechanism — Paediatric version includes a safety valve opening around 40 cmH₂O
Patient Connection
22 mm/15 mm ISO standard fittings
Oxygen Reservoir Connection
Compatible with oxygen tubing and reservoir bag for high FiO₂ delivery
Inspiratory / Expiratory Resistance
Low resistance to allow easy manual operation and patient comfort
Dead Space Volume
< 5 mL (Adult version)
Sterilization Method
Autoclavable up to 134 °C
Reusability
Designed for multiple sterilization cycles with consistent performance
Safety Features
Transparent valve housing, swivel connectors, splash guard, latex-free construction
Compliance Standards
Conforms to international medical device standards (EN ISO 10651-4 / ASTM F920)
Manufacturer
Ambu A/S, Denmark
Product Usage:

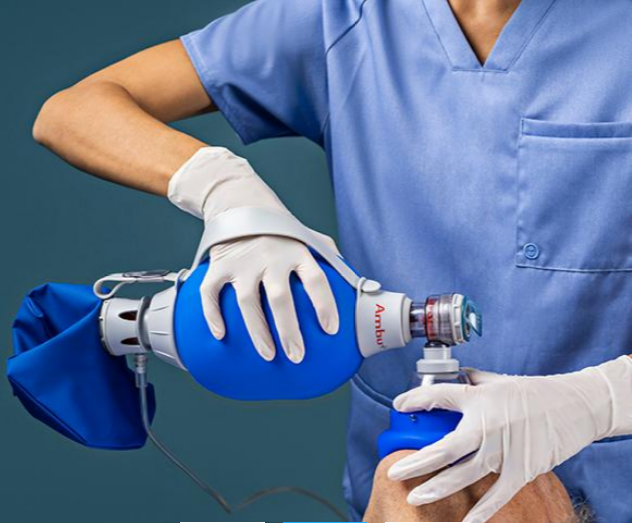

The Ambu Mark IV Reusable Resuscitator is used to manually provide ventilation to patients who are not breathing adequately or are in respiratory arrest. It allows trained medical personnel to deliver controlled breaths through a face mask or airway tube, with the option to attach an oxygen reservoir for higher oxygen delivery.
