The B. Braun Certofix Trio V715 is a triple lumen central venous catheter set intended for vascular access procedures requiring multiple infusion pathways through a single catheter system. The set is designed to support medication administration, fluid therapy, blood sampling, and hemodynamic monitoring while minimizing the need for multiple vascular access sites.
With a 15 cm polyurethane catheter and integrated insertion accessories, the V715 configuration is commonly selected for central venous access procedures where shorter catheter lengths are preferred. The complete set incorporates catheter placement components, guidewire technology, fixation accessories, and lumen differentiation features intended to support efficient vascular access workflows.
Shah Trading Corporation is a genuine BBraun distributor and supplier of vascular access solutions across India for hospitals, healthcare institutions, and clinical procurement requirements.
Key Features
- Three Independent Infusion Pathways - Supports simultaneous delivery of medications, fluids, monitoring lines, or sampling through separate lumen channels.
- Short Length Catheter Configuration - 15 cm catheter length suitable for selected jugular, subclavian, and central access procedures.
- Polyurethane Catheter Material - Material construction designed to provide insertion stability while remaining flexible after placement.
- Integrated ECG Positioning Compatibility - Supports intracavitary ECG-based catheter tip confirmation workflows.
- Valve Cannula Configuration - Designed to support controlled vascular access during insertion procedures.
- Radiopaque Catheter Construction - Allows catheter visibility when imaging confirmation is required.
- Color Differentiated Ports - Supports faster identification of lumen pathways during critical care use.
- Complete Insertion Set - Supplied with accessories intended to support catheter placement and stabilization.
Technical Specifications

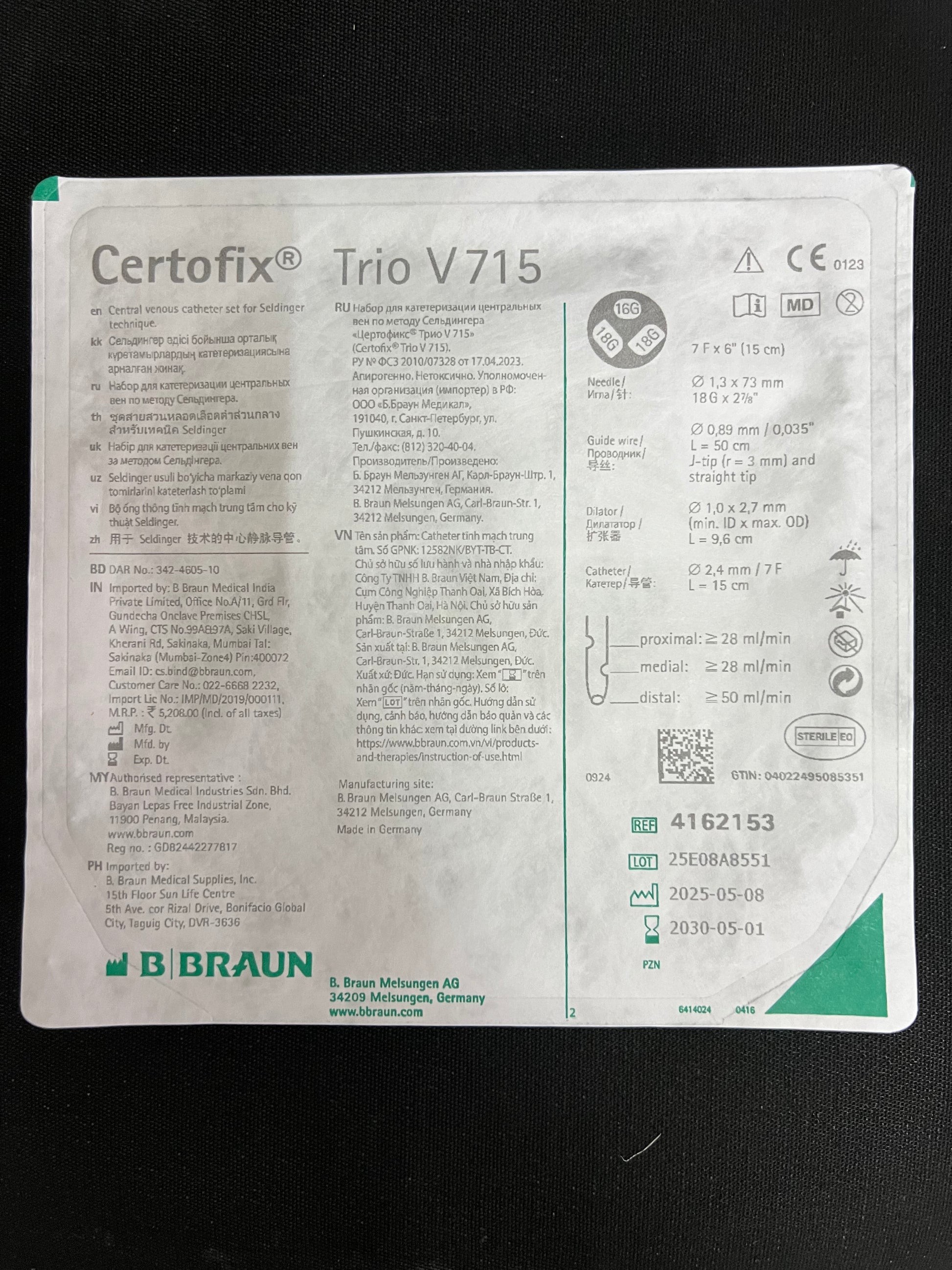

* Product Reference: V715 / 4162153
* Product Category: Triple lumen central venous catheter set
* Catheter French Size: 7 Fr
* Catheter Length: 15 cm
* Number of Lumens: 3
* Material: Polyurethane
* Outer Diameter: 2.40 mm
* Distal Lumen Gauge: 16 G
* Medial Lumen Gauge: 18 G
* Distal Flow Capacity: Up to 50 mL/min
* Medial Flow Capacity: Up to 28 mL/min
* Medial Priming Volume: 0.28 mL
* Guidewire Length: 50 cm
* Guidewire Diameter: 0.89 mm
* Cannula Gauge: 18 G
* Catheter Visibility: Radiopaque
* Sterility: Sterile packed
* Latex Free & DEHP Free
Kit Components
- Triple lumen catheter
* Valve cannula
* Flexible J-tip guidewire
* Vessel dilator
* Syringe
* Scalpel
* ECG positioning accessory
* Catheter fixation components
* Connectors and accessory components
Product Usage
The BBraun Certofix Trio V715 is used to establish central venous access when multiple therapies need to be delivered through a single catheter system. The catheter is inserted into a central vein using the Seldinger technique to provide reliable vascular access for infusion therapy, medication delivery, monitoring, and blood sampling.
